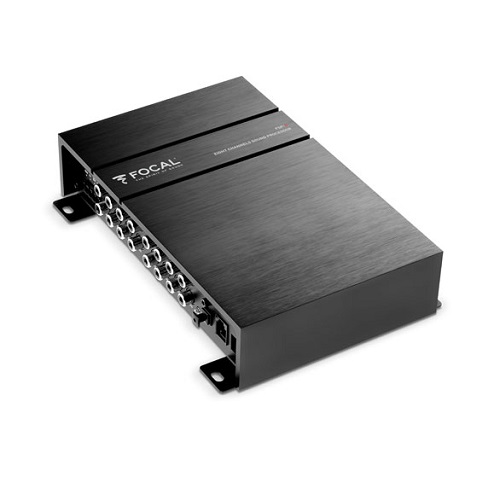

Thông số sản phẩm DSP FOCAL FSP-8
INPUTS
- Low-level input sensitivity (Analog and Aux): 1.2V – 4.9V
- High-level input sensitivity (Analog and Aux): 4.8V – 20.6V
- Digital input formats supported (optical): up to 24 bits/192kHz
OUTPUTS
- Number of channels: 8
- Max. output (with 10kΩ) level: 3.4V
- Frequency response (digital crossover off/-3dB): 5Hz – 21kHz
- Signal/noise ratio: -90dBa (analogue input) -99dBa (optical)
- Harmonic distortion – 10kΩ – @1kHz (with 22kHz low-pass filter): 0.02%
- Crosstalk – 4Ω – @1kHz Gain adjustment range: -78dB
- Equaliser: 64dB
- Adjustable high-pass crossover: 10 bands, each fully customisable for each channel
- Adjustable high-pass crossover: 16Hz – 20kHz
- Adjustable bandpass crossover: 16Hz – 20kHz
- Latency adjustment range: 16Hz – 20kHz 0-22ms per channel
- Latency adjustment steps: 0.1ms
- Phase inverter ✓
GENERAL
- Easy Configuration ✓
- Dynamic help ✓
- Power consumption on standby (product on, no signal, 14.4 Vin): 0.7a(0.73 a with remote)
- Power consumption OFF (14.4 Vin, remote OFF): < 50μ
- Remote control: Included (in US Market only)
- Protection: Polarity inverter
- Weight: 3lbs (1.35kg)
- Dimensions: (LxWxH): (1.35kg) 89/16″x57/16″x17/8″ (21.8cmx13.8cmx4.8cm)
